SK mini electric hoist

Products Details

Mini electric winch/hoist is portable and easy to operate. It has capacity with 160kgs, 190kgs, 230kgs, 3000kgs, 360kgs and 500kgs. This mini electric winch is with light weight and fast lifting speed. Motor System The motor system is using brushless motor series of high-efficiency industrial grade. Voltage of mini electric winch is 220V, and suitable for residential and home use. The limit device makes it working safely. Brake System Dual brake system with one mechanical ratchet. Brake resistor is with short circuit controller. Formula oiled copper disc brakes are with high friction coefficient, which needs no adjustment and immediately brake in power outage or malfunction. It is with great safety and long life. Simple structure in linear type ,easy in installation and maintation.   Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.  High pressure double crank to control the die opening and closing.   Running in a high automatization and intellectualization,no pollution   Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .  1)hand-hold design,be convenient for assembly and carry. 2)rugged aluminum alloy body construction provide lightweight,study&durable. 3) with temperature protection can longer service life. 4) adopt dual braking system,double protection,safe and reliable. 5) adopt upper braking system,dcuble protection,safe and reliable. 6) adopt high tenslie alloy galvanized wire rope,weer resistance & high safely factor. 7) all gears are made from high quality alloy steel of extreme surface hardness.gear operate in sealed oil bath,long service life.

Technical Parameters of SK mini hoists

Capacity

Lifting Height

Voltage

Power

Wire rope diameter

Lifting Speed

Net weight

160KG

30M

220V

1300W

5mm

19m/min

19kgs

190KG

30M

220V

1400W

5mm

19m/min

19kgs

230KG

30M

220V

1500W

5mm

19m/min

20kgs

250KG

30M

220V

1600W

5mm

19m/min

20kgs

300KG

30M

220V

1700W

5mm

19m/min

22kgs

360KG

30M

220V

1700W

5mm

19m/min

22kgs

500KG

20M

220V

1800W

6mm

13m/min

23kgs

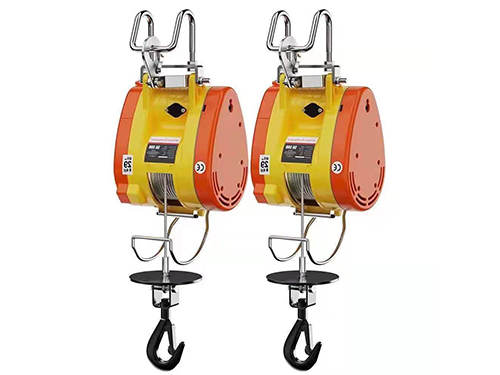

SK portable mini hoist (1) SK portable mini hoist (2) SK portable mini hoist (3) SK portable mini hoist (4)
